BKHB-12 मध्यम भोल्टेज स्विचगरर

We will present the performance, safe operation methods, and technical parameters of BKHB-12 मध्यम भोल्टेज स्विचगरर

सामाग्री

overview

BKHB-12 वातावरणीय संरक्षण ग्यास इन्सुलेटेड रिंग नेटवर्क क्याबिनेट श्रृंखला १२ केभीको साथ पावर वितरण उपकरणहरूको पूर्ण सेट हो, तीन चरण AC 50० हर्ट्ज। उत्पादनसँग साधारण संरचना, लचिलो अपरेसन, भरपर्दो इन्टरलकिंग, र सजिलो स्थापनाको विशेषताहरू छन्, र विभिन्न अनुप्रयोगहरूको लागि प्राविधिक समाधान प्रदान गर्न सक्दछ। संवेदनशील टेक्नोलोजी र सूचना प्रविधिको ग्रहण, प्राविधिक प्रदर्शन र सरल र लचिलो कन्फिगरेसन समाधानको साथ, बजारको परिवर्तन आवश्यकताहरू पूरा गर्न सक्दछ र पावर ग्रिडको बौद्धिक आवश्यकताहरूमा लागू गर्न सक्दछ।

BKHB-12 वातावरणीय मैत्री ग्यास इन्सुलेटेड रिंग नेटवर्क क्याबिनेटहरूको श्रृंखला औद्योगिक र सिभिल केबल रिंग नेटवर्कको लागि उपयुक्त छ वितरण सञ्जाल टर्मिनल परियोजना विद्युतीय ऊर्जाको स्वागत र वितरणको रूपमा, यो विशेष गरी सहरी आवासीय क्षेत्र बिजुली वितरणको लागि उपयुक्त छ, साना माध्यमिक सबस्टेसन, स्विचगेयर स्टेशनहरू, पावर अन्त शाखा बक्सहरू, बक्स सबस्टेसन, औद्योगिक र खनन उद्यमहरू, शपिंग मल्लहरू, एयरपोर्टहरू, सबवे, हावा पावर उत्पादन, अस्पतालहरू, स्टेडियमहरू, रेलवे, सुरुnel र अन्य स्थानहरू।

BKHB-12 environmental protection gas insulated ring network cabinet series Its switches and main electrical components are integrated modules.

The conductive parts between the phases are solid insulated packages, shielded cable joints are used for the outward wiring, and shielded insulated busbars are used for connecting the functional units. Therefore. The safety of use is greatly improved, and the operating mechanism adopts a spring mechanism, and the mechanical life is more than 10000 times. All its operating data and equipment status can be remotely monitored and can be unattended. It is actually a power distribution device with superior performance.

The following units can be selected to form an economical and practical power supply unit in the cabinet: vacuum new circuit unit [630A, 20-25केए]; Vacuum negative cat switch unit [630, 20-25केए].

उत्पादन features:

Environmental protection: N2 or dry air is used as an insulating medium in product manufacturing to reduce greenhouse gas emissions and achieve environmental protection purposes.

अनुप्रयोगको विस्तृत श्रृंखला: कुनै विषाक्त र हानिकारक ग्याँसहरू प्रयोग गरिएको छैन, र प्रयोग वातावरणको सुरक्षा। बेसमेन्टहरू, सुरुnels, जहाजहरूमा, वा बाहिर वा भित्र। उच्च दबाव कोठाको भित्री भाग सुख्खा हावा वा नाइट्रोजनले भर्न सकिन्छ, र उच्च उचाई, कडा हावा र बालुवा, कम तापमान, गम्भीर चिसो जस्ता कठोर अवस्थाहरूमा सुरक्षित प्रयोगको लागि उपयुक्त छ, उच्च वातावरणीय सुरक्षा आवश्यकताहरू, बारम्बार अपरेशन साइटहरू, सुरक्षित र विस्फोट-प्रुफ स्थानहरू, उच्च नुन स्प्रे, र कन्डेन्सेसन सर्तहरू। पूर्ण रूपमा इन्सुलेट र पूर्ण रूपमा बन्द, पानी सेवनको छोटो अवधि पछि उपकरणहरूको लागि उपयुक्त, केहि सफा र सुख्खा उपायहरू अपनाए पछि, यो सञ्चालन जारी राख्न सक्छ।

मर्मत मुक्त: BKHB-12 वातावरणीय सुरक्षा ग्यास इन्सुलेटेड रिंग नेटवर्क क्याबिनेट श्रृंखला अपरेटिंग संयन्त्रको उच्च-भोल्टेज स्विच अंश पूर्ण रूपमा छ सिल गरिएको अवस्था, ताकि यो सफा र मर्मतबाट मुक्त हुन सक्छ, र अपरेशन र मर्मतको लागत कम गर्न सक्दछ। स्विचगेयरको एक उच्च डिग्री छ, र अनलाइन पत्ता लगाउने कार्यले उपकरणको सञ्चालनको प्रयोगकर्तालाई वास्तविक समयमा सूचित गर्दछ। यो वितरण नेटवर्कको स्वचालित रूपमा अधिक अनुकूल छ। श्रम अपरेटिंग लागत कम गर्नुहोस् र उर्जा उद्यमहरूको उत्पादन लागत कम गर्नुहोस्।

उच्च सुरक्षा: पूर्ण ईन्टरलॉकिंग र इन्टरलकिंग प्रणाली, तीन चरण पृथक विच्छेद स्पष्ट रूपमा देखिन्छ, दुरुपयोग दुर्घटनाको घटनाबाट जोगिन। SF6 ग्यासको अनुप्रयोग हटाइएको छ। इन्टर्फेज वा बहु-सर्किट छोटो सर्किटहरूबाट बच्न इन्टरफेज अलगाव संरचना सुदृढ गर्नुहोस् जसले विस्फोट दुर्घटनाहरू विस्तार गर्न वा निम्त्याउन सक्छ। विस्फोटन-प्रुफ वातावरणीय संरक्षण ग्यास क्याबिनेट भ्याकुम उर्जाको साथ भ्याकुम बुझ्ने कक्ष अपनाइएको छ, र सिल गरिएको पोल स्तम्भमा स्विचको लागि थप सुरक्षात्मक प्रदर्शन छ।

Ease of operation: the disconnect switch grounding switch has only one operating handle, no need to identify and worry about errors, when the circuit breaker is running, the operating handle of the disconnect switch grounding switch can not be operated, and there is no need for complex technical training, so that the operation becomes extremely simple and prevents operation errors.

The sealed pole is formed by epoxy resin APG process, which has excellent electrical and mechanical properties, and the sealed pole is a key component of the switch, which is both an insulating and a bearing part. At the same time, it meets the technical requirements of heat resistance, cold resistance, crack resistance, high mechanical strength, and good insulation strength.

Single cabinet structure, using general insulation busbar and cable plugging and unplugging head produced by professional cable accessory manufacturers. The switch cabinet can be closed on site and expanded at will, avoiding the inconvenience of transportation and installation caused by multi-sister closure cabinets. Of course, it can also be used to close the cabinet with the sister.

The real isolation fracture is clearly visible

The whole series of products are uniformly designed, providing a variety of cabinet types (dissolver, load switch, PT, busbar, busbar, etc.) required by users, and the shape and geometry are completely consistent.

The स्विचगेर has intelligent interfaces and sensor installation positions, which can meet the requirements of the smart grid after being equipped with intelligent equipment.

The main bus adopts standard silicone rubber dry busbar.

The disconnect switch switch adopts a three-station disconnect switch and is installed on the bus side.

Replace SF6 load switch ring network cabinet.

Circuit breaker cabinet

project			unit	parameter
Rated voltage			केभी	12
Rated frequency			Hz	50
Rated insulation level	1min power frequency withstand voltage	Opposite the ground and the phase	केभी	42
	1min power frequency withstand voltage	Isolation fracture	केभी	48
	Lightning Shock Withstand Voltage (Peak)	Opposite the ground and the phase	केभी	75
	Lightning Shock Withstand Voltage (Peak)	Isolation fracture	केभी	85
	1min power frequency withstand voltage for auxiliary/control loops (to ground)		केभी	2
Rated current			A	630
Rated Short-Time Withstand Current (RMS)		Main loop/ground switch	केए	25/4s
Rated Short-Time Withstand Current (RMS)		Ground connection loop	केए	21.7/4s
Rated peak withstand current		Main loop/ground switch	केए	63
Rated peak withstand current		Ground connection loop	केए	54.5
Rated short-circuit interruption current and frequency			केए / times	25/30
Rated Short Circuit Closing Current (Peak)			केए	63
Rated cable charging breaking current			A	25
The rated operating sequence of the circuit breaker				O - 0.3s - CO - 180s - CO
Mechanical life	Circuit breaker/disconnect switch		times	10000/3000
Protection level	Sealed cabinet			IP67
Protection level	Switchgear housing			IP4X
Gas pressure	Gas Rated Fill Level (20°C, Gauge Pressure)		Mpa	0.02
Gas pressure	Minimum gas filling level (21°C, gauge pressure)		Mpa	0
Sealing performance	Annual leakage rate		%/year	≤0.05

Load स्विचगेर

project			unit	parameter
Rated voltage			केभी	12
Rated frequency			Hz	50
Rated insulation level	1min power frequency withstand voltage	Opposite the ground and the phase	केभी	42
	1min power frequency withstand voltage	Isolation fracture	केभी	48
	Lightning Shock Withstand Voltage (Peak)	Opposite the ground and the phase	केभी	75
	Lightning Shock Withstand Voltage (Peak)	Isolation fracture	केभी	85
	1min power frequency withstand voltage (to ground) for auxiliary/control loops		केभी	2
Rated current			A	630
Rated Short-Time Withstand Current (RMS)		Main loop/ground switch	केए	25/4s
Rated Short-Time Withstand Current (RMS)		Ground connection loop	केए	21.7/4s
Rated peak withstand current		Main loop/ground switch	केए	63
Rated peak withstand current		Ground connection loop	केए	54.5
Rated Short Circuit Closing Current (Peak)		Load switch/ground switch	केए	63
Rated active load breaking current			A	630
Rated closed-loop breaking current			A	630
5% rated active load breaking current			A	31.5
Rated cable charging breaking current			A	10
The number of rated active load breaks			times	100
Ground fault current interruption			A / times	31.5/10
The charging current of the line and cable is interrupted under the condition of ground fault			A / times	17.4/10
Mechanical life	Circuit breaker/disconnect switch		times	10000/3000
Protection level	Sealed cabinet		-	IP67
Protection level	Switchgear housing		-	IP4X
Gas pressure	Gas Rated Fill Level (20°C, Gauge Pressure)		Mpa	0.02
Gas pressure	Minimum functional level of gas (20°C, gauge pressure)		Mpa	0
Sealing performance	Annual leakage rate		%/ year	≤0.05

Environmental protection gas cabinet implementation standards

GB/T1022 high-voltage स्विचगेर and control equipment standard common technical requirements

GB/T39063640.5केभी AC metal enclosed स्विचगेर and control equipment

GB/T1985 High voltage AC disconnect switch and grounding switch

GB/T38043.6-40.5केभी AC High Voltage Load Switch

GB/T1984 High Voltage AC Circuit Breaker

GB/T4208 enclosure protection level IP code

GB/T7354 partial discharge measurement

GB/T311.1 Insulation and Fitting Part 1: Definitions, Principles and Rules

Normal use conditions of gas cabinets

High temperature: 45 degrees Celsius;

Low temperature: -25 degrees Celsius:

High temperature: (24-hour average) 35 degrees Celsius;

Large average relative humidity (24 hours): ≤95%;

Altitude: ≤ 1500 meters:

Seismic Capacity: 8 degrees:

Protection level: live body seal IP67, स्विचगेर shell IP4X;

The surrounding air should not be significantly polluted by corrosive combustible gases, water vapor, etc.

When used under normal environmental conditions that exceed the provisions of GB/T3906, the user and our company shall negotiate.

उत्पादन structure

Ring network cabinet annotation description:

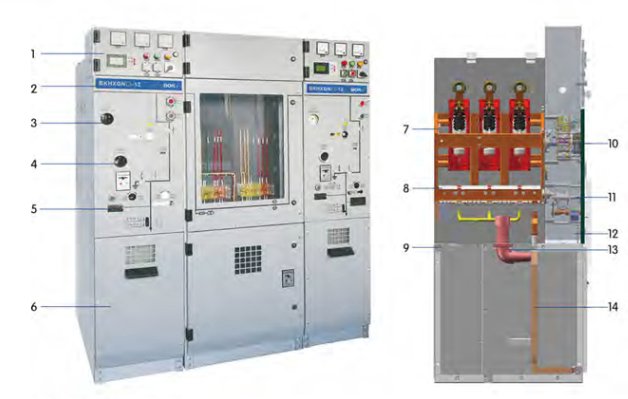

1. Low-pressure instrument room 2. Eyebrow 3. Operation room 4. Observation simplification

5. Live display 6. Cable room 7. Vacuum circuit breaker/load switch

8. Three-station isolation/grounding switch 9. Pressure relief device 10. Switch mechanism

11. Three-station mechanism 12. Five-proof interlocking mechanism 13. Inlet and outlet line through the wall casing 14. Grounding busbar

Environmental protection gas cabinet configuration plan 1

CL 650mm

◆Basic equipment◇ Load switch

◇ Two-station disconnect switch

◇ Live display

◇ Standard busbar

◇ Operating handle

◇ Contact bus

Optional accessories

◇ Electric operation mechanism

◇ Digital display instrument

◇ DC power supply

◇ Electromagnetic lock

◇ Pointer instrument

◇ 3-in-2 mechanical interlock

◇ Online monitoring of lightning arresters

◇ Low pressure chamber

◇ Digital display instrument

◇ Raised seat

◇ Passive protection

◇ Raised seat

◇ Rectifier module

◇ Low pressure chamber

◇ 2-in-1 mechanical interlock

◇ Surge arresters

◇ DC power supply (12h-24Ah)

◇ Pointer instrument

◇ Electromagnetic lock

PTC 500mm

◆Basic equipment

◇ Load switch

◇ Three-station disconnect switch

◇ Live display

◇ Standard busbar

◇ Operating handle

◆ Voltage transformer

◇ PT roasting tube

◇ Elbow type cable plug (including cable)

◆Optional accessories

◇ Electric camera mechanism ◇ Digital display instrument ◇ DC power supply

◇ Electromagnetic lock

◇ Pointer instrument

◇ 3-in-2 mechanical interlock

◇ Online monitoring of lightning arresters

◇ Low pressure chamber

◇ Digital display instrument

◇ Raised seat

◇ Passive protection

◇ Raised seat

◇ Olive block

◇ Low pressure chamber

◇ 2-in-1 mechanical interlock

◇ Surge arresters

◇ DC power supply 112h-24Ah)

◇ Pointer instrument

◇ Electromagnetic lock

PT 500mm

◆Basic equipment

◇ Three-station disconnect switch

◇ Live display

◇ Standard field line

◇ Operating handle

◇ Voltage transformer

◇ PT roasting tube

◇ Elbow type cable plug (including cable)

Optional accessories

◇ Electric operation mechanism

◇ Digital display instrument

◇ DC power supply

◇ Electromagnetic lock

◇ Pointer instrument

3-in-2 mechanical interlock 0

◇ Online monitoring of lightning arresters

◇ Low pressure chamber

◇ Digital display instrument

◇ Raised seat

◇ Passive protection

◇ Raised seat

◇ Rectifier module

◇ Low pressure chamber

◇ 2-in-1 mechanical interlock

◇ Surge arresters

◇ DC power supply 112h-24Ah)

◇ Pointer instrument

◇ Electromagnetic lock

PT 500mm

◆Basic equipment

◇ Live display

◇ Standard busbar

◇ Voltage transformer

◇ PT roasting tube

◇ Elbow type cable plug (including cable)

◆Optional accessories

◇ Electric camera mechanism

◇ Digital display instrument

◇ DC power supply

◇ Electromagnetic lock

◇ Pointer instrument

◇ 3-in-2 mechanical interlock

◇ Online monitoring of lightning arresters

◇ Low pressure chamber

◇ Digital display instrument

◇ Raised seat

◇ Passive protection

◇ Raised seat

◇ Rectifier module

◇ Low pressure chamber

◇ 2-in-1 mechanical interlock

◇ Follow the thunder device

◇ DC power supply 112h-24Ah)

◇ Pointer instrument

◇ Electromagnetic lock

PTS 500mm

◆Basic equipment

Now voltage transformers

o PT fused tubes

◇ Elbow type cable plug (including cable)

Optional accessories

arrester

◇ Online monitoring of lightning arresters

◇ DC power supply 112h-24Ah)

◇ Low pressure chamber

Q Pointer Instrument

◇ Digital display instrument

◇ Electric lock

◇ Raised seat

M 650mm

◆Basic equipment

0 live display

◇ Long and short field lines

◇ Transfer bus

Q Voltage transformer

◇ FT roasting tube

◇ Metering box

0 Voltage रूपान्तरणकर्ता (Electricity Supply)

Note: If the PT front is equipped with a formal disconnect switch, the cabinet width size needs to be changed to 1000mm, and the other dimensions remain unchanged.

◆Optional accessories

Low pressure chamber

◇ Pointer instrument

◇ Digital display instrument

◇ Electromagnetic lock

◇ Raised seat

◇ Temperature and temperature controller

Environmental protection gas cabinet configuration scheme 2

C 420mm

◆Basic equipment

◇ Three-station disconnect switch

0 live display

◇ Standard field line

◇ Operating handle

◇Load switch

◆Optional accessories

◇ Electric operation mechanism

◇ Surge arresters

◇ Comprehensive insurance

◇ Digital display instrument

◇ DC power supply

◇ Magnetic lock

◇ Zero-sequence transformer

◇ Fault indicator (with temperature measurement)

◇ Pointer instrument

Q 3-in-2 mechanical interlock

◇ Cable attachment

◇ Online monitoring of lightning arresters

◇ Passive protection

◇ Raised seat

◇ Rectifier module

◇ Core type current transformer

◇ Fault indicator EKL-4

Q Low pressure chamber

◇ 2-in-1 mechanical interlock

◇ Incoming line grounding locking device

V 420mm

◆Basic equipment

◇ Three-station disconnect switch

◇ Live display

◇ Standard busbar

◇ Operating handle

◇ Circuit breaker

◇ Current transformer

◆Optional accessories

◇ Electric operation mechanism

◇ Surge arresters

◇ Comprehensive insurance

◇ Digital display instrument

◇ DC drifting

◇ Electromagnetic lock

0 Zero-sequence transformer

◇ Fault indicator (with temperature measurement)

◇ Pointer instrument

Q 3-in-2 mechanical interlock

◇ Cable attachment

◇ Online monitoring of lightning arresters

◇ Passive protection

◇ Raised seat

◇ Rectifier crossbar

◇ Core type current transformer

◇ Fault indicator EKL-4

◇ Low pressure chamber

◇ 2-in-1 mechanical interlock

◇ Incoming line grounding locking device

V 650mm

◆Basic equipment

◇ Two-station disconnect switch

◇ Live display

◇ Standard busbar

◇ Operating handle

◇ Circuit breaker

◇ Current transformer

◇ Contact bus

◆Optional accessories

◇ Electric operation mechanism

◇ Comprehensive insurance

◇ Low pressure chamber

0 Pointer Instrument

◇ Digital display instrument

◇ Raised seat

◇ Passive protection

◇ Rectifier module

◇ Electric lock

◇ 2-in-1 mechanical interlock

◇ 3-in-2 mechanical interlock

◇ DC power supply

Environmental protection gas cabinet configuration plan 3

Dl 420mm

◆Basic equipment

◇ Live display

◇ Standard busbar

Optional accessories

◇ Cable attachment

◇ Surge arresters

◇ Online monitoring of lightning arresters

◇ Electric lock

◇ Raised seat

◇ Fault indicator EKL-4

◇ Fault indicator (with temperature measurement)

Dl 420mm

◆Basic equipment

◇ Live display

◇ Standard busbar

◇ Operating handle

◇ Two-station disconnect switch

◆Optional accessories

◇ Low pressure chamber

◇ Two-in-one maple interlock

◇ 3-in-2 mechanical interlock

◇ Electromagnetic lock

◇ Raised seat

Previous Article：SF6-12 कम्प्याक्ट मध्यम भोल्टेज स्विचगरर Next Article：XGN15-12 मध्यम भोल्टेज स्विचगरर

Xiongfeng इलेक्ट्रिकल कम्पनी, लिमिटेड

XGN2-12 मध्यम भोल्टेज स्विचगरर

JXF न्यून भोल्टेज वितरण बाकस

XM श्रृंखला पारदर्शी विरोधी चोर बिजुली मिटर बाकस

BKHB-12 मध्यम भोल्टेज स्विचगरर

फुजियान Xiongfeng इलेक्ट्रिकल कम्पनी, लिमिटेड
